Feature Product
- Required for install, but not included: 3/8" x 5/8" line set | Each U-Match heat pump is powered by Gree's energy efficient G10 inverter and a variable speed compressor. Our G10 inverter technology saves energy, reduces outdoor noise and keeps room temperature steady by eliminating the harsh starts & stops of conventional systems.
- WHISPER QUIET - U-Match systems are energy efficient and quiet too. Operate with sound levels starting as low as 56 dB(A).
- SIZE | Available in a full range of capacities to perfectly match any size space, large or small. Best of all, the ultimate in reliable room comfort is generated with Eco friendly R410A refrigerant.
- The Gree U-Match ceiling cassette ductless mini split heat pump system. Each ceiling cassette can be operated by infrared wireless remote control or wired controller mounted to the wall.
- SELF-DIAGNOSTICS SYSTEM | Each indoor and outdoor unit continuously runs a series of multi-point diagnostic tests on the system, to automatically scan for unacceptable operating conditions or malfunctions. If such conditions occur, the system takes corrective action or stops. The fault code will be shown on the indoor, outdoor and wired controller displays. Problems and system status are displayed with comprehensive diagnostic codes to simplify system troubleshooting and shorten repair times.
Description

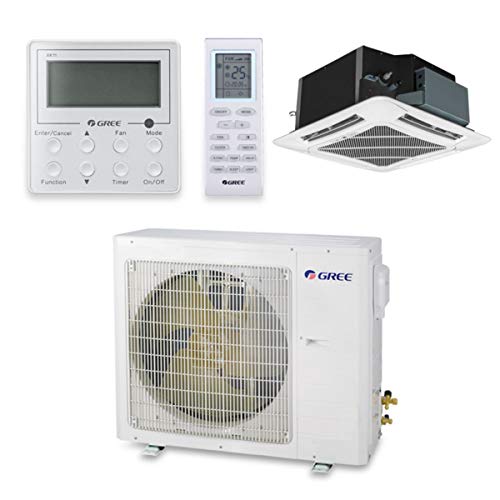

System Includes:
Outdoor Condenser: UMAT36HP230V1AO
Indoor Air Handler: UMAT36HP230V1AC
Grill for Air Handler: UMAT36GRILLE
Remote Control: Hand held IR (Optional XK-60 Wall Mount Controller, SKU: 30294000007, must be ordered separately).
Just like a wall-mounted ductless split, the air handler is connected to the Outdoor Condenser via a line set.
ThisSystem uses a 3/8" x 5/8" and has a maximum line run of 98' (29.8m).
Features and Benefits:
High Efficiency
G10 Inverter Engineering Technology
4-way discharge air
Quiet operation sound pressure level at 63db (outdoor), down to 43db (indoor) Cleanable air filter
Power failure recovery
Internal condensate drain pump
Low ambient cooling (5 deg F)
Eco-friendly R410A refrigerant Attractive
decorative grille cover
Sentry float switch in air handler
